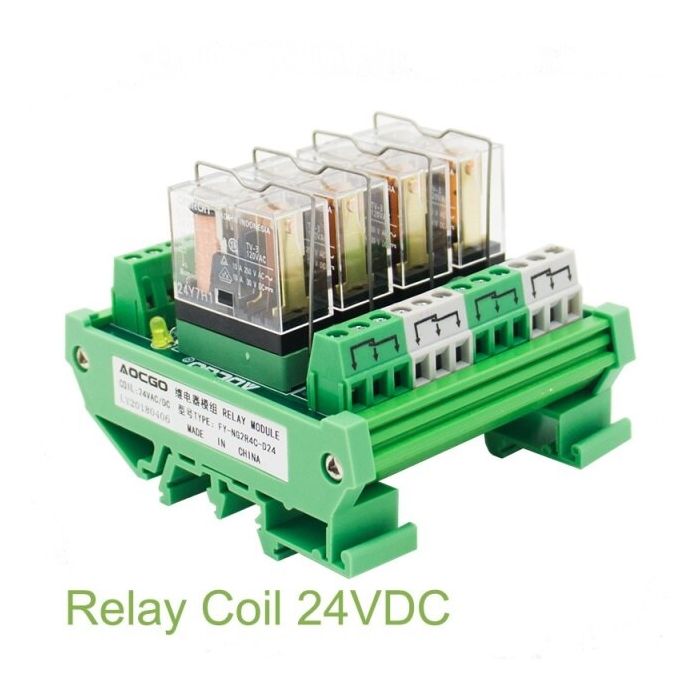

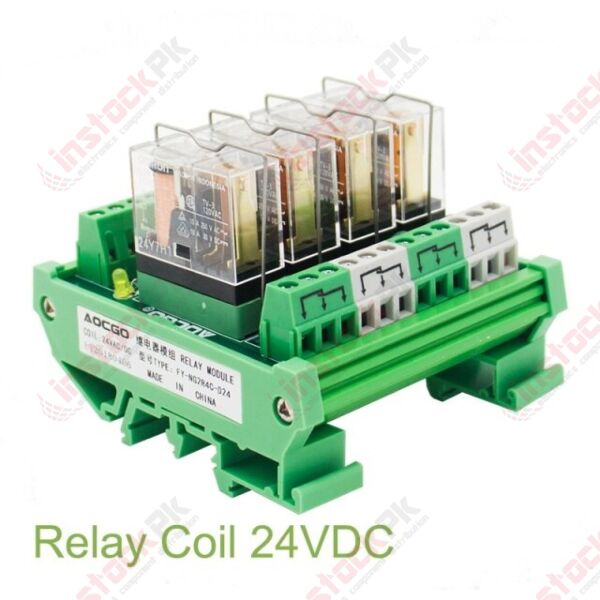

Aocgo: 16 Channel Interface Relay Module Omron G2R 24V DC/AC 1 SPDT DIN Rail Mount
Features:
-
DIN Rail interface relay modules 1/2/4/6/8/10/12/14/16 channels optional;
-
Buit-in OMRON relay G2R-1 certified with VDE,UL,CSA,SEV,SEMKO;
-
Switching current upto 10A at 250VAC or 30VDC;
-
Input connections by screw terminal block.NPN&PNP can be interchangeable,
-
AC&DC can be in compatible;
-
Relay status indicator LED,surge suppression protection and overvoltage protection are
-
provided for each relay channel;
-
Relay socket pins are gold plated,makes contact more reliable and stable;
-
DIN Rail mountable for width TS15/28/35
Ordering Code:
Relay Module Dimension:
|
Relay Qty |
Dimension(mm) |
N.W.(g) |
|
1 |
18*85*70 |
50g |
|
2 |
40*85*70 |
105g |
|
4 |
70*85*70 |
200g |
|
6 |
100*85*70 |
260g |
|
8 |
130*85*70 |
340g |
|
10 |
160*85*70 |
410g |
|
12 |
190*85*70 |
480g |
|
14 |
220*85*70 |
560g |
|
16 |
250*85*70 |
595g |
Application:
Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC,microprocessor systems and time relays etc,amplifying the control current
of outputs,to protect key control systems not being destroyed.
DATE:
|
Input Operation Voltage |
Rated DC±20% &AC±10% |
|
Relay Mounting |
Pluggable |
|
Rated Load Current |
10A 250VAC/30VDC |
|
Max Inrush Current |
10A |
|
Coil Power |
Approx. 0.53 W |
|
Operate Time(at normal volt.) |
≤15ms |
|
Release Time(at normal volt.) |
≤10ms |
|
Input/Output Connections |
Screw terminal block |
|
Wire Range |
0.2~2.5mm2 |
|
Stripping Length |
6-7mm |
|
DIN Rail Mountable |
15/28/35mm |
|
Power Per Channel |
Wiring Diagram:
| Part Number | FY-NG2R16C-D24 |
|---|---|
| Weight (KG) | 0.200000 |
| Number of Channels | 16 |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
