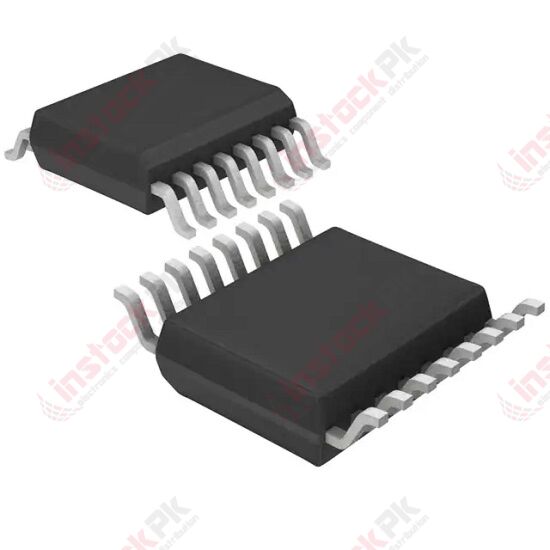

Analog Devices: Digital to Analogue Converter DAC 12-bit, SPI, 16-Pin SSOP - AD5726YRSZ-REEL
PKR 5,650.00
SKU
MD-01743
Digital to Analogue Converter, Bipolar/Unipolar, 12 bit, SPI, ± 5V to ± 15V, SSOP, 16 Pins
Product Attribute
|
Part Status
|
Active
|
|
Number of Bits
|
12
|
|
Number of D/A Converters
|
4
|
|
Settling Time
|
13µs (Typ)
|
|
Output Type
|
Voltage - Buffered
|
|
Differential Output
|
No
|
|
Data Interface
|
SPI, DSP
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
±5V ~ 15V
|
|
Voltage - Supply, Digital
|
5V ~ 15V
|
|
INL/DNL (LSB)
|
±1 (Max), ±1 (Max)
|
|
Architecture
|
R-2R
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Package / Case
|
16-SSOP (0.209", 5.30mm Width)
|
|
Supplier Device Package
|
16-SSOP
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
AD5726
|
| Part Number | AD5726YRSZ-REEL |
|---|---|
| Manufacturer | Analog Devices |
| Weight (KG) | 0.005000 |
| Product Availability | Available on Demand |
