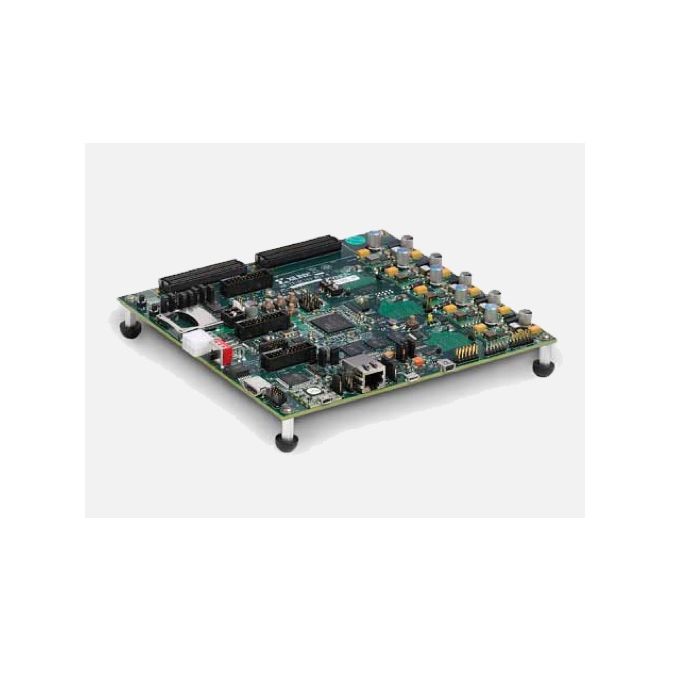

AMD Zynq 7000 SoC ZC702 FPGA Evaluation Kit - EK-Z7-ZC702-G (Seller-Refurbished)
PKR 375,000.00
Only 1 left
SKU
MD-02093
This product is slightly used in (In-House Training), and in great working condition.
The Zynq 7000 SoC ZC702 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processin
Product Description
The Zynq™ 7000 SoC ZC702 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.
Key Features & Benefits
- Optimized for quickly prototyping embedded applications using Zynq 7000 SoCs
- Hardware, design tools, IP, and pre-verified reference designs
- Demonstrates a embedded design, targeting video pipeline
- Advanced memory interface with 1GB DDR3 Component Memory
- Enabling serial connectivity with USB OTG, UART, IIC, CAN Bus
- Supports embedded processing with Dual ARM Cortex-A9 core processors
- Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII)
- Implement Video display applications with HDMI out
- Expand I/O with the FPGA Mezzanine Card (FMC) interface
Featured AMD Devices
Featuring the ROHS compliant ZC702 kit including the XC7Z020-CLG484-1
| Logic Cells (K) | 85 |
|---|---|
| Block RAM (Mb) | 4.9 |
| DSP Slices | 220 |
| Maximum I/O Pins | 200 |
Product Information
Board Features
Featuring the ZC702 Base Board
Configuration
- Onboard configuration circuitry
- 16MB Quad SPI Flash
- SDIO Card Interface (boot)
- PC4 and 20 pin JTAG ports
Video/ Display
- HDMI Video OUT
- 8X LEDs
Power
- 12V wall adapter or ATX
- Voltage and Current measurement capability of supplies
Memory
- DDR3 Component Memory 1GB
- Support 32 data width
- 16MB Quad SPI Flash
- IIC - 1 KB EEPROM
Clocking
- 200MHz Fixed PL Oscillator (Differential LVDS)
- 156.25MHz (default) I2C Programmable Oscillator (Differential LVDS)
- 33.33MHz Fixed PS System Oscillator (Single-Ended CMOS)
Communication & Networking
- Gigabit Ethernet GMII, RGMII and SGMII
- USB OTG 1 (PS) - Host USB
- IIC Bus Headers/HUB (PS)
- 1 CAN with Wake on CAN (PS)
- USB UART (PS)
Control & I/O
- 3 User Push Buttons
- 2 User Switches
- 8 User LEDs
Analog
- XADC header
Expansion Connectors
- FMC #1-LPC connector (0 GTX Transceiver, 68 single-ended or 34 differential user defined signals)
- FMC #2-LPC connector (0 GTX Transceiver, 68 single-ended or 34 differential user defined signals)
- IIC HUB/Expander
- Dual Pmod (8 I/O Shared with LED's)
- Single Pmod (4 I/O Shared with PJTAG)
| Part Number | EK-Z7-ZC702-G |
|---|---|
| Manufacturer | Xilinx |
| Weight (KG) | 4.000000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
