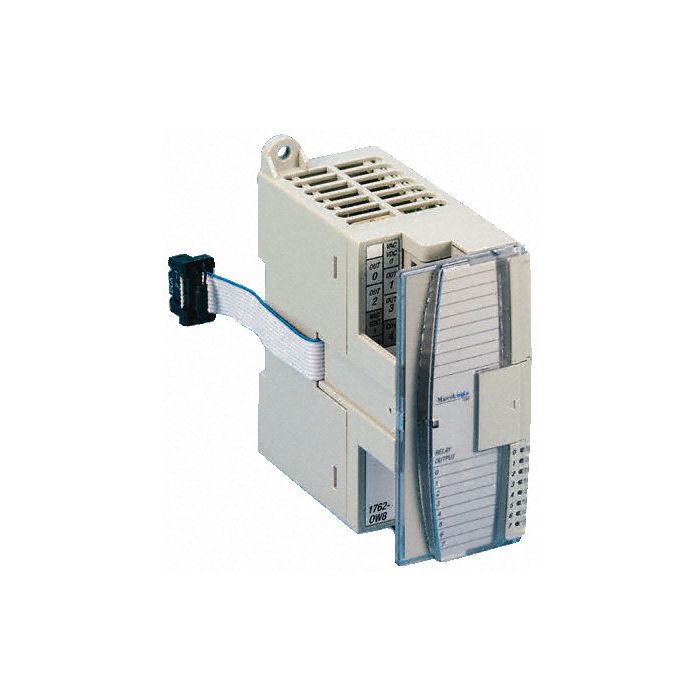

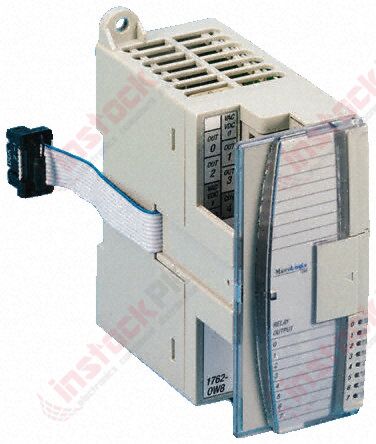

Allen Bradley - MicroLogix Expansion I/O PLC Module 1762-IQ8OW6

Our Bulletin 1762 MicroLogix™ Expansion I/O modules extend the capabilities of the MicroLogix 1100, 1200, and 1400 controllers by maximizing flexibility of the I/O count and type. The modular, rackless design enhances cost savings and reduces replacement parts inventory. Modules can be either DIN rail or panel mounted.

Features

• Feature-rich functionality addresses a wide range of applications
• Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
• Software keying prevents incorrect positioning within the system
• Finger-safe terminal blocks for I/O wiring
• Small footprint reduces panel space
• Integrated high-performance I/O bus
• Label to record I/O terminal designations
• Digital, analog, and specialty I/O modules available

1762 MicroLogix™ Digital Expansion I/O Modules

• 8, 16, or 32 inputs or outputs
• AC and DC voltages
• Combination module with 8 inputs and 6 contact outputs
• AC/DC relay output modules

1762 MicroLogix Analog Expansion I/O Modules

• Input module with 4 differential inputs
• Output module with 4 single-ended outputs
• Combination module with 2 differential inputs and 2 single-ended outputs

1762 MicroLogix Specialty Expansion I/O Modules

• RTD module with 4 input channels
• Thermocouple module with 4 input channels plus a CJC sensor

Maximum Number of Expansion I/O Modules per Controller

Note

Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.
