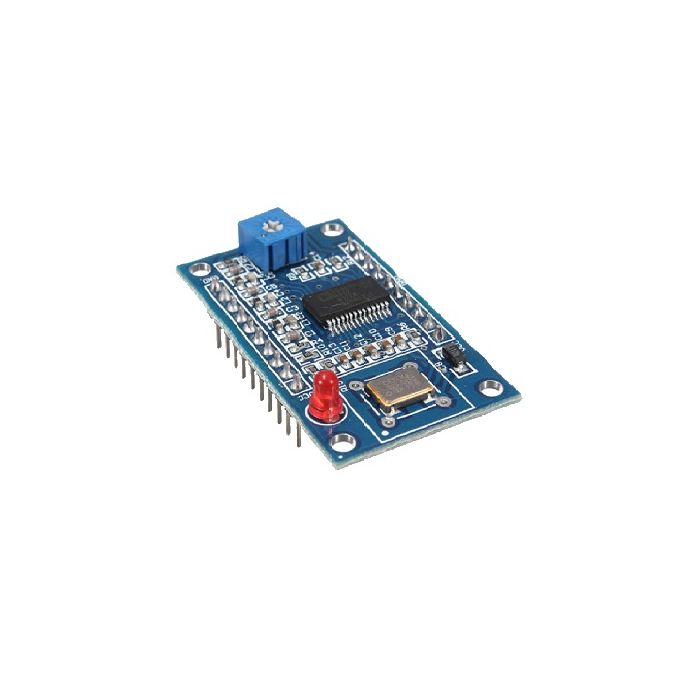

DDS Signal Generator Module (0-40MHz) - AD9850
Special Price
PKR 3,800.00
Regular Price
PKR 4,820.00
SKU
MD-00016
1) AD9850: 0-40MHz.
2). 2 sine wave and 2 square wave output.
3). After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
2). 2 sine wave and 2 square wave output.
3). After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
Specification:
1) AD9850: 0-40MHz.
2). 2 sine wave and 2 square wave output.
3). After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
4). Square Wave: 0-1MHz.
5). Low-pass filter with 70MHz, so the waveform better than SN.
6). Parallel and serial data input can be selected via a jumper.
7). DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.
8). Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different.
9). Active AD9850 125MHz crystal oscillator modules.
| Part Number | AD9850 |
|---|---|
| Weight (KG) | 0.060000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
