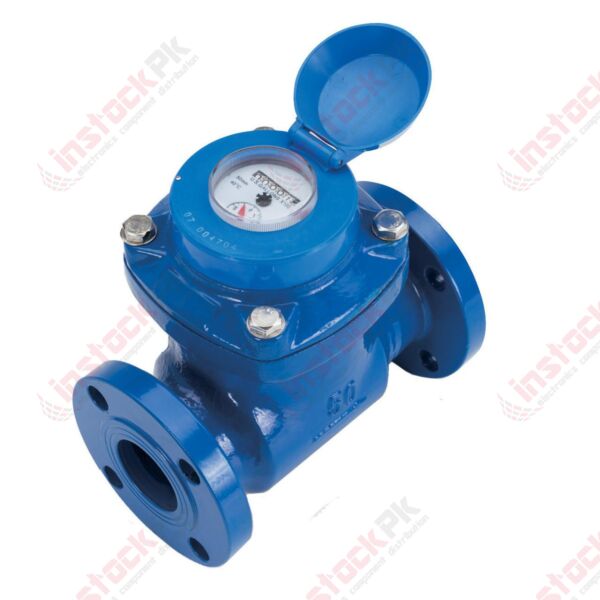

AccentPDIR ACS-W-400-R/100G 4-Inch Turbine Water Meter

The AccentPDIR ACS-W-400-R/100G is a 4-inch turbine water meter designed for measuring medium-to-high water flow rates in commercial and industrial applications. Featuring a robust cast iron body, mechanical totalizer, and reed-switch pulse output, it provides a practical solution for water consumption monitoring, process measurement, and remote flow data collection.

The meter uses a turbine mechanism to measure the volume of water passing through the pipeline. Its pulse output can be connected to compatible pulse counters, monitoring systems, and data loggers for remote water measurement.

Key Features

• 4-inch nominal pipe connection

• Woltman-type turbine water meter design

• Durable cast iron body with epoxy coating

• Mechanical register for accumulated water volume

• Reed-switch pulse output for external monitoring

• Pulse rate of 100 US gallons per pulse

• Designed for medium-to-high flow water applications

• Suitable for compatible remote monitoring and data-logging systems

• Low pressure-loss design for water measurement applications

Technical Specifications

• Brand: AccentPDIR

• Series: ACS-W

• Model: ACS-W-400-R/100G

• Manufacturer Part Number (MPN): ACS-W-400-R/100G

• Product Type: Turbine Water Meter

• Meter Design: Woltman-type turbine

• Nominal Size: 4 inches (DN100 nominal)

• Meter Body: Epoxy-coated cast iron

• Register: Mechanical totalizer

• Pulse Output: Reed-switch dry contact

• Pulse Rate: 100 US gallons per pulse

• Maximum Working Pressure: Verify against the exact model datasheet

• Maximum Water Temperature: Verify against the exact model datasheet

• Electrical Connection: Passive reed-switch output; verify sensor ratings before connection

• Installation Orientation: Follow the manufacturer's instructions

Applications

The AccentPDIR turbine water meter is suitable for a range of water measurement and monitoring applications, including:

• Commercial water consumption monitoring

• Industrial water distribution systems

• Water flow measurement in pipelines

• Process monitoring and control

• Remote water meter reading

• Automated water monitoring systems

• Pulse counting and data logging using compatible equipment

Pulse Output and Monitoring

This model features a reed-switch pulse output that produces one pulse for every 100 US gallons of measured water volume.

The pulse output can be connected to compatible counters, controllers, or data loggers to monitor accumulated water consumption. Additional monitoring equipment may be required to convert the pulses into volume readings or calculate flow rates.

Confirm the electrical ratings and input compatibility of your monitoring equipment before connecting the sensor.

Installation and Compatibility

For reliable operation, install the meter according to the manufacturer's instructions and the flow-direction arrow marked on the meter body. The pipeline should remain full of water during normal measurement.

Check the flange dimensions, pipeline requirements, installation orientation, and recommended straight-pipe lengths before installation. Ensure that the meter is compatible with the intended water system and operating conditions.

Package Contents

• 1 × AccentPDIR ACS-W-400-R/100G Turbine Water Meter

Please confirm whether the pulse sensor cable, gaskets, installation accessories, and documentation are included with your supplied unit before listing them as package contents.

Important Notes

• The pulse output is rated at 100 US gallons per pulse; it is not a direct gallons-per-minute output.

• Maximum pressure, operating temperature, and electrical ratings should be confirmed against the datasheet for the exact model supplied.

• Installation and connection should follow the manufacturer's recommendations.

• Product photographs should represent the exact model and configuration being sold.
