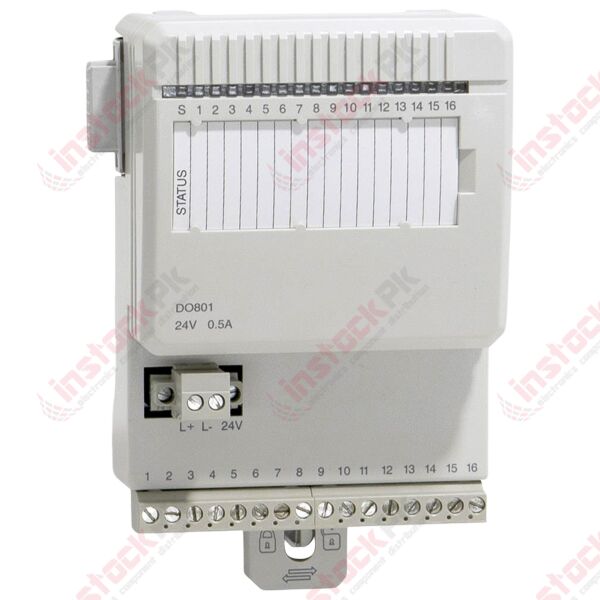

ABB: Digital Output Module 24V, 16 Channel - DO801 - 3BSE020510R1
1. General Introduction
The DO801 is a 16 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are in one isolated group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.
2. Specification of DO801
|
General info |
|
|
Type |
Digital Output |
|
Signal specification |
24 V d.c. (12 - 32 V d.c.), 0.5 A |
|
Article number |
3BSE020510R1 |
|
Number of channels |
16 |
|
Signal type |
Current sourcing, current limiting |
|
HART |
No |
|
SOE |
No |
|
Redundancy |
No |
|
High Integrity |
No |
|
Intrinsic safety |
No |
|
Mechanics |
S800L |
|
Detailed data |
|
|
Isolation |
GroupWise isolated from ground |
|
Output load |
< 0.4 Ω |
|
Current limiting |
Short circuit proof current limited output |
|
Maximum field cable length |
600 meters (656 yards) |
|
Rated insulation voltage |
50 V |
|
Dielectric test voltage |
500 V a.c. |
|
Power dissipation |
Typ. 2.1 W |
|
Current consumption +5 V Module bus |
80mA |
|
Current consumption +24 V Module bus |
0 |
|
Current consumption +24 V external |
0 |
|
Supported wire size |
Solid: 0.05-2.5 mm2, 30-12 AWG Stranded: 0.05-1.5 mm2, 30-12 AWG Recommended torque: 0.5-0.6 Nm Stripping length 6-7.5mm, 0.24-0.30 inch |
|
Diagnostics |
|
|
Front LED’s |
S(tatus), Channel 1-16 Status |
|
Supervision |
Module Error, Module Warning, Channel Error |
|
Environmental and certification |
|
|
CE mark |
Yes |
|
Electrical safety |
IEC 61131-2, UL 508 |
|
Hazardous location |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
|
Marine certification |
ABS, BV, DNV-GL, LR, RS, CCS |
|
Protection rating |
IP20 according to IEC 60529 |
|
Corrosive atmosphere ISA-S71.04 |
G3 |
|
Climatic operating conditions |
0 to +55 °C (Storage -25 to +70 °C), RH=5 to 95 % no condensation, IEC/EN61131-2 |
|
Pollution degree |
Degree 2, IEC 60664-1 |
|
Mechanical operating conditions |
IEC/EN 61131-2 |
|
EMC |
EN 61000-6-4 and EN 61000-6-2 |
|
Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
|
Equipment class |
Class I according to IEC 61140; (earth protected) |
|
Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
|
RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
|
WEEE compliance |
DIRECTIVE/2012/19/EU |
|
Dimensions |
|
|
Width |
86.1 mm (3.4”) |
|
Depth |
58.5 mm (2.3”) |
|
Height |
110 mm (4.33”) |
|
Weight |
0.24 kg (0.53 lbs.) |
3. Selection table of I/O Modules
|
Name |
HART |
High Integrity |
Intrinsic safety |
Mechanics |
Redundancy |
SOE |
Type |
|||||||
|
DI801 |
No |
No |
No |
S800L |
No |
No |
Digital Input |
|||||||
|
DI802 |
No |
No |
No |
S800L |
No |
No |
Digital Input |
|||||||
|
DI803 |
No |
No |
No |
S800L |
No |
No |
Digital Input |
|||||||
|
DI810 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI811 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI814 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI818 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI820 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI821 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI825 |
No |
No |
No |
S800 |
No |
Yes |
Digital Input |
|||||||
|
DI828 |
No |
No |
No |
S800 |
No |
No |
Digital Input |
|||||||
|
DI830 |
No |
No |
No |
S800 |
No |
Yes |
Digital Input |
|||||||
|
DI831 |
No |
No |
No |
S800 |
No |
Yes |
Digital Input |
|||||||
|
DI840 |
No |
No |
No |
S800 |
Yes |
Yes |
Digital Input |
|||||||
|
DI880 |
No |
