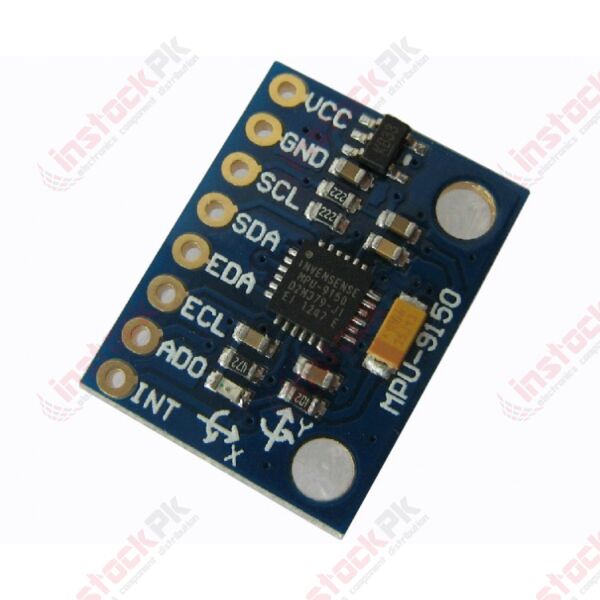

9-Axis Electronic Compass Accelerometer Gyroscope Module GY-9150 (MPU 9150)
PKR 2,390.00
SKU
MD-00340
- Buy 3 for PKR 2,320.00 each and save 3%
- Buy 10 for PKR 2,250.00 each and save 6%
- Buy 25 for PKR 2,190.00 each and save 8%
The MPU-9150 is the first 9-axis MEMS Motion Tracking device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors.
The MPU-9150 is the first 9-axis MEMS Motion Tracking device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors. The MPU-9150 is a System in Package (Sip) that combines two chips: MPU-6050 and AK8975.
The MPU-6050, which contains a 3-axis gyroscope, 3-axis accelerometer, and an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis MotionFusion algorithms. The AK8975 is a 3-axis digital compass.
FEATURES:
- Operating Voltage: 2.375V - 3.46V
- Internal 16bit ADC 16-Bit Data Output
- Gyro Range: ±250 ±500 ±1000 ±2000°/s
- Acceleration Range: ±2g ±4g ±8g ±16g
- Communication: I2C Protocol Standard
- Digital Motion Processing™ (DMP™) Engine
- Embedded Calibration Algorithms
- Digital Output Temperature Sensor
- 3-Axis Digital Compass AK8975
- Internal 13bit ADC for the compass
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X 9-Axis Electronic Compass Accelerometer Gyroscope Module GY-9150 (MPU 9150)
| Part Number | NA |
|---|---|
| Weight (KG) | 0.050000 |
| Manufacturer | Made in China |
| Voltage (Min) | 2.3V |
| Voltage (Max) | 3.4V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | 3.4m |
| Frequency | 400kHz |
| Load Cell (kg) | NA |
| Output Type | Digital |
| Range | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Operating System | NA |
| Num of Pin's | 8 |
| Diameter | NA |
| Size (mm) | NA |
