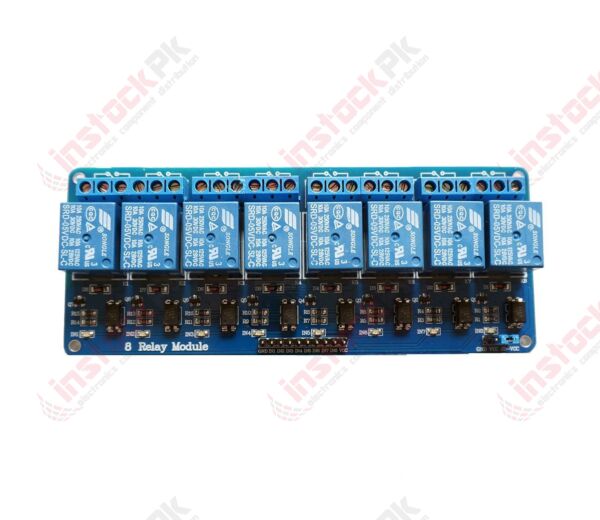

8-Channel Opto Isolated Relay Board (5V 10A)
SKU
CM-00090
PKR 1,700.00
High Quality 8-Channel Optocoupler Isolated Relay Board to be used with any Microcontrtoller.
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
Categories: Relays, Switching Module
High Quality 8-Channel Optocoupler Isolated Relay Board to be used with any Microcontrtoller.
Specification:
8-channel relay output modules, relay output contacts 250 10A 30v DC. Input IN1, IN2, IN3, IN4,IN5, IN6, IN7, IN8 the signal line LOW effective. VCC, GND power input, can relay a separate power supply relay power input of JD-VCC.
Relay output contacts: 250 10A
USE: Connect 5V and Gnd to Relay Board, Connect Microcontroller output pins to IN1, IN2, IN3, IN4,IN5, IN6, IN7, IN8.
Package size:
12cm x 12cm x 8cm (4.72in x 4.72in x 3.15in)
NOTE: The digital inputs from Microcontroller are Active LOW: The relay actuates and an LED lights when the input pin is HIGH, and turns off on LOW.
Specification:
8-channel relay output modules, relay output contacts 250 10A 30v DC. Input IN1, IN2, IN3, IN4,IN5, IN6, IN7, IN8 the signal line LOW effective. VCC, GND power input, can relay a separate power supply relay power input of JD-VCC.
Relay output contacts: 250 10A
USE: Connect 5V and Gnd to Relay Board, Connect Microcontroller output pins to IN1, IN2, IN3, IN4,IN5, IN6, IN7, IN8.
Package size:
12cm x 12cm x 8cm (4.72in x 4.72in x 3.15in)
NOTE: The digital inputs from Microcontroller are Active LOW: The relay actuates and an LED lights when the input pin is HIGH, and turns off on LOW.
| Part Number | NA |
|---|---|
| Manufacturer | Made in China |
| Weight (KG) | 1.000000 |
