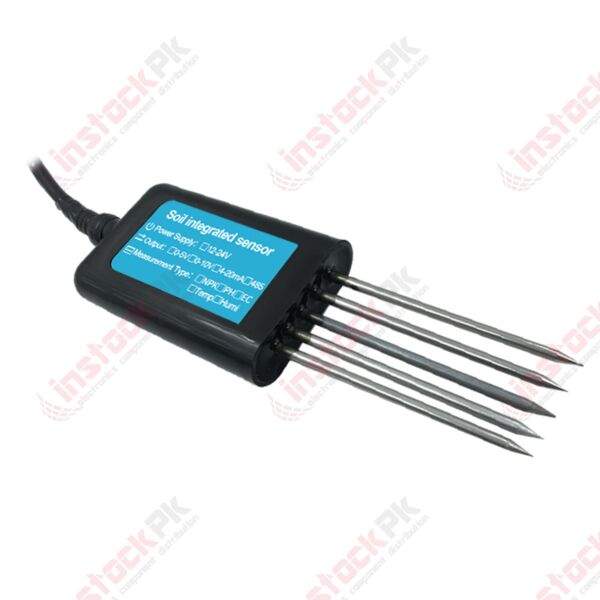

7-in-1 Soil Sensor | NPK, pH, EC, Moisture & Temperature Meter Probe RS485
SKU
MD-02322
PKR 17,500.00
🔥 High Demand Allocation:
3 Units
⚠️ Limited Quantity Remaining
- Buy 3 for PKR 5.00 each and save 100%
Categories: Temperature Sensor, Environmental Sensors
Maximize your agricultural yields and automate your environmental monitoring with our industrial-grade Blue 7-in-1 Soil Integrated Sensor. Designed for precision agriculture, smart greenhouses, and scientific research, this single probe delivers highly accurate, real-time data across seven critical soil health metrics. Equipped with a 5-pin layout and supporting the standard RS485 Modbus-RTU protocol, it integrates seamlessly into your existing IoT networks, PLCs, or microcontroller setups (Arduino, Raspberry Pi).
Complete 7-in-1 Soil Diagnostics
Stop buying separate meters. This all-in-one instrument continuously tracks:
- Macronutrients (N, P, K): Monitor Nitrogen, Phosphorus, and Potassium levels to optimize fertilizer usage.
- Soil Chemistry (pH): Keep tabs on acidity and alkalinity to maximize nutrient uptake.
- Salinity (EC): Measure Electrical Conductivity to prevent root damage from salt accumulation.
- Microclimate: Log high-precision Soil Moisture and Soil Temperature data for perfect irrigation cycles.
Built for Harsh Environments
Engineered to withstand the demanding conditions of outdoor farming and deep-soil burial, this sensor is built to last:
- IP68 Waterproof Rating: Vacuum-sealed with high-density epoxy resin to prevent internal condensation and water ingress.
- Corrosion-Resistant Probes: The 5-pin layout utilizes specialized stainless steel prongs that resist long-term electrolysis, rust, and salt corrosion.
- Robust Outer Shell: The durable blue housing resists UV damage, impact, and agricultural chemicals.
Seamless Industrial Connectivity
Operating on the industry-standard RS485 Modbus-RTU communication protocol, the sensor provides long-distance transmission stability and strong anti-interference capabilities. Multiple sensors can be easily daisy-chained on a single bus network, making it highly scalable for large-scale agricultural operations.
Broad Application Versatility
- Precision open-field farming and orchard management.
- Smart automated greenhouses and hydroponics.
- Sewage and water treatment plant soil filtering.
- Forestry research, turf management, and golf course maintenance.
Key Specifications
| Parameter | Specification Range / Details |
|---|---|
| Monitored Parameters | Nitrogen (N), Phosphorus (P), Potassium (K), pH, EC, Moisture, Temperature |
| Interface / Connections | 5-Pin Layout, 4-Core Cable (Standard 2 Meters) |
| Output Communication | RS485 (Standard Modbus-RTU Protocol) |
| Power Supply Input | DC 12V – 24V |
| NPK Range | 0 – 1999 mg/kg (mg/L) |
| pH Measurement Range | 3 – 9 pH |
| Moisture Range | 0 – 100% Volumetric Water Content (VWC) |
| Temperature Range | -40°C to +80°C |
| EC Range | 0 – 10000 μS/cm |
| Ingress Protection | IP68 (Fully Waterproof & Submersible) |
| Part Number | NA |
|---|---|
| Manufacturer | NA / Unknown |
| Weight (KG) | 0.200000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
