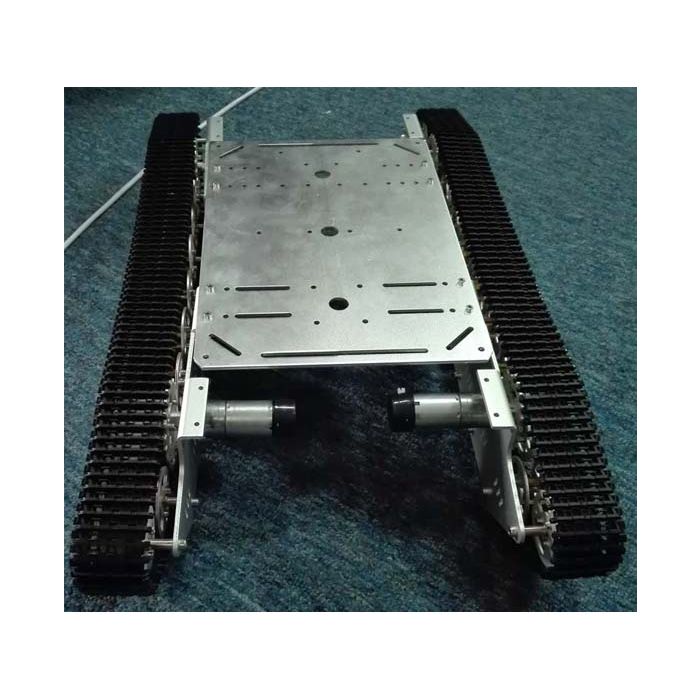

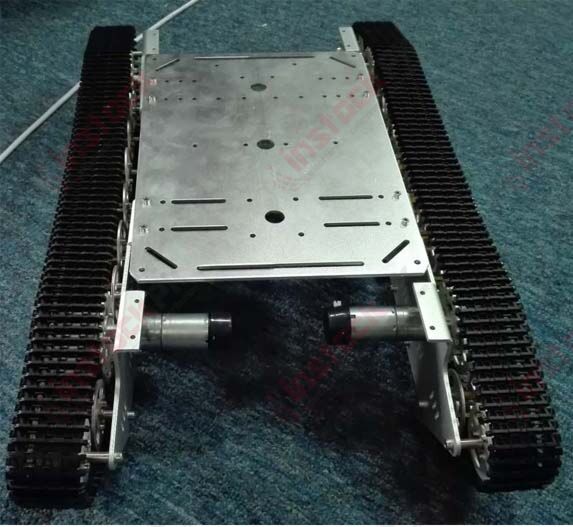

Aluminum Alloy Metal Tank Robot Chassis 4WD - ET800 T800
SKU
MD-00607
Categories: Robotics, Robotic Kits
SPECIFICATIONS:
- Name: ET800 smart tank chassis
- Material: Aluminum
- Oxidation: Yes
- Color: Silver
- Track: Plastic
- Size: about 550 * 280 * 110mm (L * W * H)
- weight：3.8kg
MOTOR PARAMETERS:
- Name: 25mm brushless DC motor (encoder with Hall sensor)
- Output Rate: 150 ± 10% rpm
- Load Current: 200mA (Max)
- Stall current: 4500mA (max)
- Stall Torque: 9.5kgNaN
- Load speed: 100 ± 10% rpm
- Load torque: 3000gNaN
- Load current: 1200mA (Max)
- Load Noise: 56dB
- Operating voltage: 9V
- Shaft extension Dimensions: 14.5mm
- Axial clearance: 0.05-0.50mm
- Screw size: M3.0
- Shaft: phi4mm, D3.5
- Encoder parameters: 2 pulses / revolution
- Sensor operating voltage: 3-5V
PACKAGE INCLUDES:
- 1 X 4WD Metal Chassis Tank ET800
| Weight (KG) | 3.800000 |
|---|---|
| Product Availability | In Stock |
| Material | Aluminium |
| Voltage (V) | 9 |
| Power | NA |
| Current (A) | 1200maH |
| Frequency | NA |
| Temperature Range (Min) | -25°C |
| Motor Type | DC Brush Gear Speed Encoder Motor |
| Revolutions Per Minute | 100 ± 10% rpm |
| Num of Encoder | 4 |
| Dimension | NA |
| Wheel Dimension | NA |
| Drive Type | 4WD |
| No. of Motors | 4 |
| Manufacturer | Made in China |
