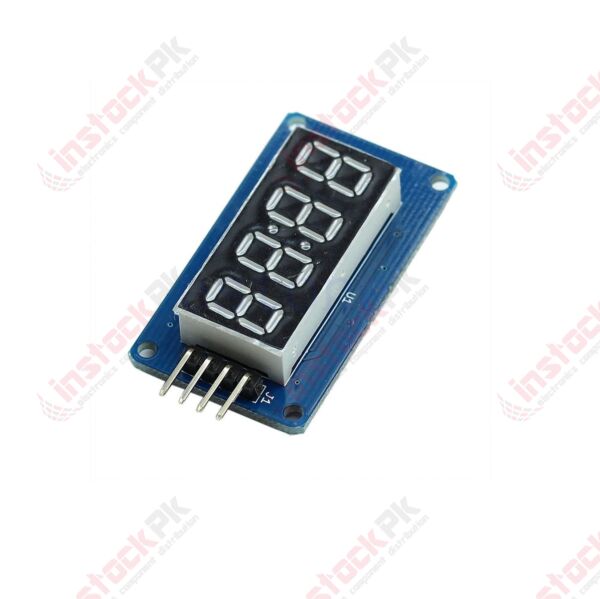

4-Bit 4 Digit Seven Segment LED Display Module (TM1637) For Arduino
PKR 300.00
SKU
MD-00308
- Buy 3 for PKR 285.00 each and save 5%
- Buy 10 for PKR 275.00 each and save 8%
- Buy 50 for PKR 270.00 each and save 10%
TM1637 is a chip for driving 7-segment displays. There are several modules using this chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability, but is not used in this module.
TM1637 is a chip for driving 7-segment displays. There are several modules using this chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability, but is not used in this module.
FEATURES:
- Display common anode for the four red LED
- Digital tube 8 gray adjustable
- Level control interface for 5V or 3.3V
- 4 M2 screws positioning holes for easy installation
- Control Interface : A total of four pins (GND, VCC, DIO, CLK), GND to ground , VCC is the power supply , DIO of data input and output pin , CLK is the clock signal pin.
APPLICATIONS:
- Can use as a 4 digit display unit.
- Can use as a clock display.
- DIY clock project.
- 4 digit display unit.
- Counter project using 7 segment display
PACKAGE INCLUDES:
- 1 X 4-Bit LED Display Module (TM1637) For Arduino
| Part Number | NA |
|---|---|
| Weight (KG) | 0.050000 |
| Manufacturer | Made in China |
| Voltage (Min) | 3.3V |
| Voltage (Max) | 5V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | NA |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | NA |
| Range | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | NA |
| Diameter | NA |
| Size (mm) | 42X24X12mm |
