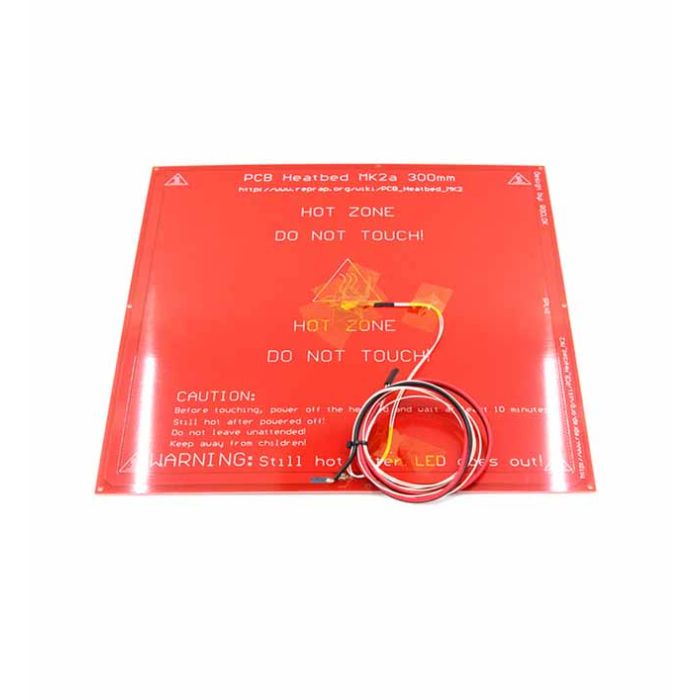

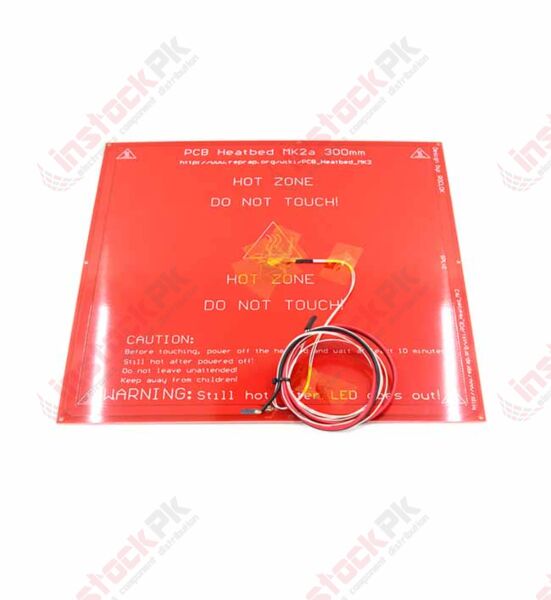

3D-Printer RepRap PCB Heatbed MK2A (300x300mm)

SKU
MD-00750
PKR8,850.00
Quantity: 1
3D-Printer RepRap PCB Heatbed MK2A (300x300mm)
  • Buy 3 for PKR8,407.50 each and save 5%
  • Buy 10 for PKR8,142.00 each and save 8%

This heatbed is designed to be compatible with any 3D printer that can accept the RAMPS MK2A version of heatbed. This heatbed has a power capability allowing it to be used with 24V power supply sources. It features a central mounting hole on the front side to allow for three point mounting. This is much easier for bed levelling in comparison to 4 point mounting. First level the side with two holes and fix in place, then level the side with one hole. A glass plate is highly recommended to provide a truly flat surface and rigidity. Additionally, the solder pads have been greatly increased in size, making it much easier and allowing for the use of 1206 surface mount components. But this does not remove the need to use proper strain relief.

SPECIFICATIONS:



  1. Dimensions (Outer): 328mm x 328mm
  2. Dimensions (Heat Bed): 300mm x 300mm
  3. Material:FR4 1.6±0.15mm
  4. 2 Layer, 35μm Copper
  5. Input Voltage: 24V DC
  6. Power: >300W
  7. Copper Plated Holes

PACKAGE INCLUDES:

  1. 1 X 3D-Printer RepRap PCB Heatbed MK2A (300x300mm)





Weight (KG) 0.300000
Manufacturer Made in China
Product Availability In Stock
Voltage (V) 24
Power >300W
Material FR4
Thermistor Size NA
Structure Heatbed
Nozzle Type NA
Shaft Bore Size NA
Diameter 300x300x2.0mm
Size (mm) 328*328mm
