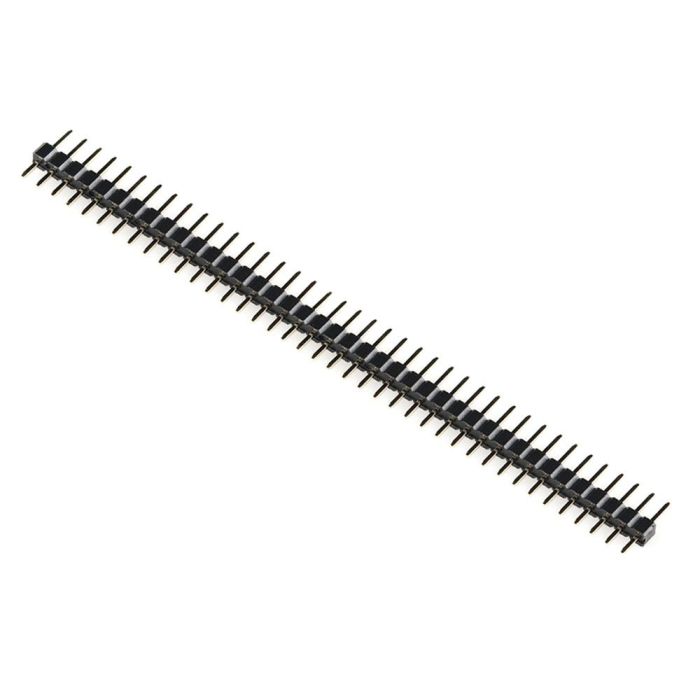

2mm Pitch 40 Pin Stackable Male to Male Header Connector

2mm Pitch 40 Pin Stackable Male to Male Header Connector is low-profile connectors designed for signal and low power PC board connections when space is at a premium.

Options include through-hole, surface mount and can be customized for mixed technology, press-fit and pass-through terminations. The pins and blades are available in various sizes, counts, amperages, and plating.

Single row, straight mounting angle, male to male pin header, electric component, is easy to install. This pin header is a suitable socket connector for the PCB board and integrated circuit, uses widely in the computer and breadboard.

Great for when you need to connect to something with 2mm pitch. Stack these headers side by side or break them apart to receive your desired length. They are even gold plated to ensure longevity without oxidation.

For ESP modules , zigbee, Xbee modules, and such other small modules where common header does not fit. The distance between each consecutive pinhole/header is 2mm

The 2mm Pitch 40 Pin Stackable Male to Male Header Pins can accommodate a maximum current of 3A, with a 30 to 22 AWG wire size, and up to 40-positions. Secondary offers 2.0mm pitch female headers in either vertical or right-angle orientation at high quality and affordable China-quoted price that snuggly fits with the pins of a male header and acts as a receptacle.

The 2.0mm pitch female headers are commonly found in PC’s and are also made to work in Arduino boards, Arduino Pro and Arduino Mega with either single or double-row female headers, facilitating connections for programming and incorporation into other circuits.

They have the perfect height for clearing the USB-B connector and great for stacking multiple shields.

Features

• Single row.
• 2.0mm pitch.
• 1 x 40 pins.
• Through-hole mount.
• Gold plated.
• Perfect for use in your Arduino, Raspberry Pi, Pine64, or other maker projects.
• Square Posts.
• Stackable – End to End and Side to side.
• Can break manually for the length needed.
• Standoffs allow cleaning of solder contaminants.

2mm Pitch 40 Pin Stackable Male to Male Header Pins Specifications

• Product Name: PCB Connector
• Material: Plastic, Metal
• Pin Number: 40
• Pitch: 2.0mm
• Total Size: 80 x 7 x 5mm/ 3.1″ x 0.28″ x 0.2″ (L*W*H)
• Color: Black, Silver Tone

2mm Pitch 40 Pin Stackable Male to Male Header Pins Applications: –

• LED applications
• Arduino boards
• Solar applications
• Weighing systems

Datasheet: –

cdn-shop.adafruit.com/…/2671/PID+2671.pdf

Package: –

1 x 2mm Pitch 40 Pin Stackable Male to Male Header Pins
