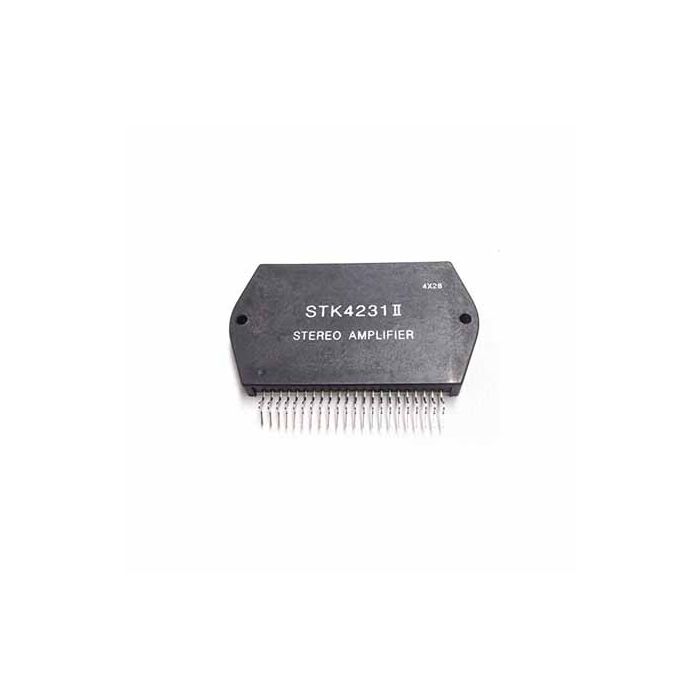

2-Channel AF Power Amplifier IC STK4231II (100W)
SKU
MD-00693
PKR1,930.00
Quantity: 0
2-Channel AF Power Amplifier IC STK4231II (100W)
- Buy 5 for PKR1,835.00 each and save 5%
- Buy 20 for PKR1,775.00 each and save 8%
- Buy 50 for PKR1,737.00 each and save 10%
Categories: Components, Integrated Circuit, Electronics Parts
FEATURES:
- The STK4201II series (STK4231II) and STK4201V series (high-grade type) are pin-compatible in the output range of 60W to 100W. Once the PCB pattern is designed, you can easily satisfy the requirements for new sets simply by changing the IC.
- Built-in muting circuit to cut off various kinds of pop noise
- Greatly reduced heat sink due to case temperature 125°C guaranteed
- Excellent cost performance
SPECIFICATIONS:
- Maximum Supply Voltage Vcc max : ±75 V
- Thermal Resistance: 6j-c 1.1 °C/W
- Junction Temperature Tj: 150 °C
- Operating Case Temperature TC: 125 °C
- Storage Temperature Tstg: - 3 0 to +125 °C
- Available Time for Load Shorted ts VCC=±51.0V(RL = 8Q, 1s
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X 2-Channel AF Power Amplifier IC STK4231II (100W)
| Weight (KG) | 0.020000 |
|---|---|
| Manufacturer | Made in China |
| Model Number | STK4231 II |
| Voltage (Min) | ±51.0V |
| Voltage (Max) | ±75V |
| Power | 60~100W |
| Temperature Range (Min) | -25°C |
| Temperature Range (Max) | 125°C |
| Memory | NA |
| Num of Pin's | NA |
| SMD_Package | 4086 |
